Samsung SM-A042M (Galaxy A04e) – MT6357 Power IC

Samsung SM-A042M (Galaxy A04e) – MT6357 Power IC Hardware Solution

Samsung SM-A042M (Galaxy A04e) is a MediaTek powered smartphone, and its complete power management depends on the MT6357 Power IC. In hardware repair work, this IC is one of the most important parts of the motherboard. Many dead, no-power, or restart problems in this model are directly related to MT6357.

Function of MT6357 Power IC

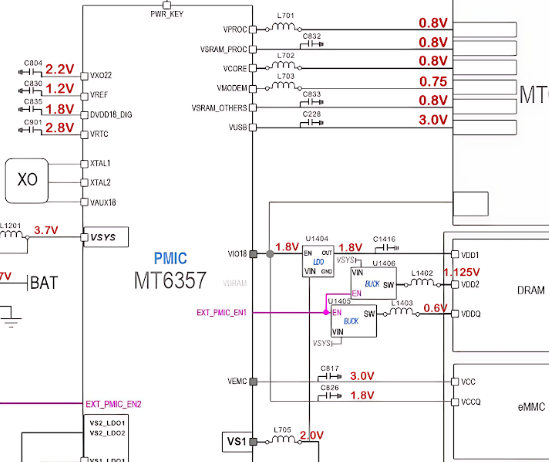

The MT6357 Power IC takes voltage from the battery and distributes stable power to all major sections of the phone. It supplies power to the CPU, RAM, eMMC, display, backlight, camera, audio, and network section. When the power button is pressed, MT6357 starts the power-on sequence and controls how voltage is released step by step.

If this IC does not work properly, the phone cannot start, even if the battery is fully charged.

Common MT6357 Problems in SM-A042M

Based on practical repair experience, the following issues are commonly seen:

Phone completely dead, no vibration or display

No response when power key is pressed

Phone restarts automatically

Phone stuck on logo

Very low or zero charging current

Power IC heating immediately after battery connection

No display or no backlight due to missing voltage

These problems usually occur after water damage, heavy drop, charging short, power surge, or use of low-quality charger.

How to Diagnose MT6357 Power IC

First, check the battery voltage. It should be between 3.8V and 4.2V. Then check the main power line (VPH_PWR) using a multimeter. If battery voltage is present but the phone is still dead, MT6357 should be suspected.

Using a DC power supply is very helpful. If the phone shows no current or unstable current when pressing the power key, it usually points to a power IC issue. Also check for short circuit around the MT6357 area.

Visual inspection is important. Any corrosion, burn marks, or damaged coils and capacitors near the power IC can affect its working.

Hardware Repair Solution

In some cases, reflow of the MT6357 Power IC may temporarily solve the issue if there is a dry solder joint. However, reflow is not a permanent solution and should only be used for testing.

The proper and permanent solution is MT6357 Power IC replacement. Carefully remove the faulty IC using controlled hot air temperature. Clean the pads properly, then place a new or reballed MT6357 IC and solder it correctly.

After replacement:

Check for short circuit

Measure main voltage lines

Power ON the phone using DC supply first

Also inspect nearby coils, resistors, and capacitors, because a faulty supporting component can damage the new power IC again.

Important Precautions

Always disconnect battery before heating

Do not apply excess heat to avoid CPU damage

Use good quality flux and tools

Confirm fault before replacing the IC

Final Conclusion

In Samsung SM-A042M (Galaxy A04e), the MT6357 Power IC is a common cause of dead and no-power problems. With proper diagnosis and careful IC replacement, the phone can be repaired successfully in most cases, unless there is CPU or memory damage.
